Issue: 2015 > October > original article

No accumulation of a prophylactic dose of nadroparin in moderate renal insufficiency

F. Atiq, P.M.L.A. van den Bemt, F.W.G. Leebeek, T. van Gelder, J. Versmissen
AbstractFull textPDF

Full text


Kidney disease, low-molecular-weight heparin, nadroparin, pharmacokinetics


Low-molecular-weight heparins (LMWHs) are at least as effective as unfractionated heparin (UFH) in the treatment and prevention of venous thromboembolism (VTE) and do not cause more bleeding complications.1-6 LMWHs have many practical advantages, such as subcutaneous administration, higher bioavailability, longer half-life (permitting once or twice daily administration), a more predictable anticoagulant response and dose-dependent elimination.7,8 A disadvantage is the possible accumulation in patients with renal insufficiency.
Several LMWHs are on the market, and they vary in mean molecular weight, elimination half-life and anti-Xa/IIa activity ratio.9,10 LMWHs are mainly excreted by the kidney and as a consequence they can accumulate in patients with renal insufficiency, putting these patients at risk for haemorrhage.11,12 Due to the differences described above, data on accumulation cannot easily be converted from one LMWH to another. For instance, accumulation has been found for therapeutic and prophylactic dosages of enoxaparin, certoparin and bemiparin in patients with renal insufficiency, but not for tinzaparin.12-22 Information on prophylactic dosages of nadroparin is lacking.23
Nadroparin is a widely used LMWH with a mean molecular weight of 4300 Dalton, a bioavailability above 89% and an elimination half-life of 3.7 hours.6,10 Nadroparin showed accumulation in a therapeutic dosage.24 However, although no proper studies have been conducted to assess accumulation of prophylactic nadroparin, dose reduction is sometimes recommended, especially for high prophylactic dosages.6,8,23,25,26 We chose to study the high prophylactic dosage of 5700 IU since the patients at high risk of VTE who are eligible for this dosage are of most interest, and lack of accumulation can be translated to lower dosages.27
The aim of this study was to assess accumulation of a prophylactic dosage of nadroparin 5700 IU by measuring peak anti-Xa activity in patients with normal renal function and in patients with renal insufficiency.


Study design

We conducted a prospective observational cohort study in medical and surgical patients at the Erasmus MC Rotterdam (a large university hospital) from March until August 2014. We did not interfere in nadroparin prescription, and included only patients in whom nadroparin was started by the treating physician. For every new prescription of once daily subcutaneous nadroparin 5700 IU (Fraxiparine®, GlaxoSmithKline, Zeist, the Netherlands) an alert was sent automatically to the research team by the electronic prescription system, after which the patient was screened for eligibility. The study was approved by the medical ethics committee and all patients gave written informed consent.

Eligible patients were 18 years or older with a recent creatinine measurement (not older than one month without an indication that it could have changed due to onset of new medical conditions) and a glomerular filtration rate (GFR) above 10 ml/min/1.73 m2. A further requirement was the expectation that they would be on nadroparin 5700 IU for at least five days during hospitalisation. Furthermore, patients were not eligible if they had severe liver failure, were pregnant, had used LMWH prior to inclusion and if nadroparin was started in the intensive care unit (ICU). Enrolled patients were excluded if they left the hospital or if the nadroparin 5700 IU dose was stopped or changed.

Nadroparin administration and measurement of peak anti-Xa activity
Nadroparin was administered subcutaneously every day at the same time. To study peak anti-Xa activity, blood samples were taken four hours after nadroparin injection. Samples were taken on day 1, 3, 5 and if possible on day 10. Times of administration and blood sampling were registered by the nurse. If a blood sample could not be taken on these days for logistic reasons, blood sampling was performed the next day, four hours post injection. Blood samples were obtained in a 3.2% sodium citrate anticoagulated tube and sent immediately to the hospital haemostasis laboratory. Anti-Xa activity was measured by using a validated chromogenic assay (Sysmex CS-5100) and was expressed in international units per millilitre (IU/ml). The minimum anti-Xa activity that could be measured was 0.10 IU/ml.

Glomerular filtration rate
GFR was calculated using the Modification of Diet in Renal Diseases (MDRD) equation: GFR (ml/min/1.73 m2 ) = 186 x (serum creatinine (µmol/l) / 88.4)-1.154 x age (in years)–0.203 x 0.742 (for women) and multiplied by 1.21 for negroid patients (which was not the case for any of the patients).

Primary outcomes were peak anti-Xa ratio on day 5 compared with day 1. Secondary outcomes were peak anti-Xa ratio on day 3 compared with day 1, bleeding complications, VTE and mortality within 30 days. Bleeding complications were classified as major bleeding, clinically relevant non-major bleeding and minor bleeding as suggested earlier.28

Statistical analysis
Based on studies on other LMWHs and on clinical relevance, we defined the statistical detection threshold as 30% (i.e. percentage increase of peak anti-Xa activity considered to be accumulation).25 Six patients per group needed to be included for a power of 0.80 using an alpha of 0.05. We aimed for six patients in GFR groups of > 50 ml/min/1.73 m2 , 40-50 ml/min/1.73 m2 , 30-40 ml/ min/1.73 m2, 20-30 ml/min/1.73 m2, and 10-20 ml/ min/1.73 m2. We used a paired t-test for the primary outcome, an unpaired t-test for continuous baseline characteristics and chi-square for categorical variables. A p-value below 0.05 was considered significant.


Patient characteristics

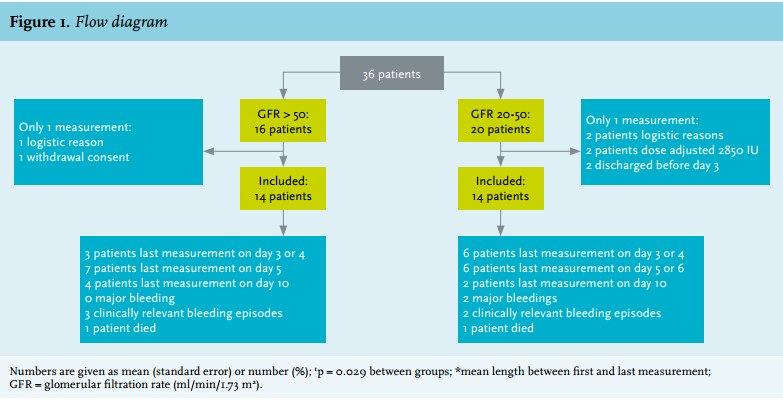

We included 36 patients in the study. Eight were excluded from statistical analyses because they had less than two peak anti-Xa measurements which restricted the analysis to 28 patients. No patients with GFR 10-20 ml/ min/1.73 m2 were included and only two with GFR 20-30 ml/min/1.73 m2. The group of GFR 30-40 ml/ min/1.73 m2 consisted of five patients and the group of GFR 40-50 ml/min/1.73 m2 of 7 patients. We pooled the data into two groups for analysis: normal renal function (GFR > 50 ml/min/1.73 m2 ) and moderate renal insufficiency (GFR 20-50 ml/min/1.73 m2 ) (figure 1).

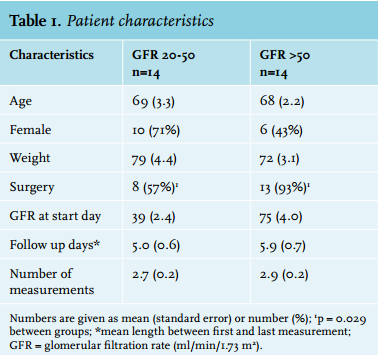

Table 1 shows the baseline characteristics. While GFR was stable in the group with normal renal function, it was more variable in the group with moderate renal insufficiency: In four patients, GFR improved to > 50 ml/min/1.73 m2 during follow-up (on day 3, 4 or 5), while in one patient the GFR did improve but remained below 50 ml/min/1.73 m2. GFR decreased in one patient, and only one measurement was available in four patients.

Primary outcomes: peak anti-Xa activity

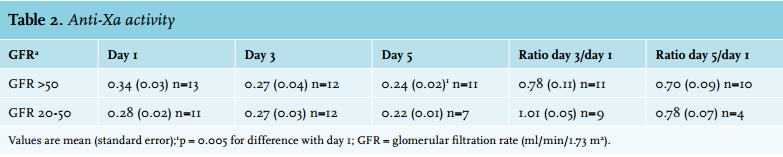

Table 2 shows the mean peak anti-Xa activity on day 1, day 3 and day 5 and the ratios of day 3 and 5 to day 1, while figures 2A and 2B show the peak anti-Xa activity for all patients during follow-up including measurements on other days than included in the calculations.
Patients with GFR > 50 ml/min/1.73 m2 (n = 14) on average had a lower peak anti-Xa activity after daily nadroparin administration during follow-up than on day 1, but this was only significant when day 5 was compared with day 1 (ratio 0.7; p = 0.005).
In the group with GFR 20-50 ml/min/1.73 m2 average peak anti-Xa peak activity did not change after daily nadroparin administration (table 2).
If the target range of peak anti-Xa activity for optimal thromboprophylaxis is considered to be between 0.2-0.5 IU/ml, 13 patients had suboptimal peak anti-Xa activity at some point during the study, while only one measurement was above the suggested target range: 0.54 on day 3, in a patient with GFR 70 ml/min/1.73 m2. 29

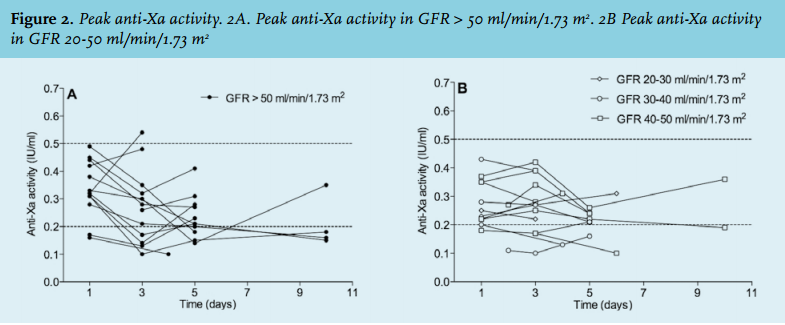

In a large number of patients peak anti-Xa activity decreased after repetitive administrations (figure 2), which seemed to correlate with undergoing surgery (p = 0.023). The administration of nadroparin was not interrupted in any of the cases.

Secondary outcomes: bleeding complications and death
During the study, seven patients developed bleeding complications, of which four were in the group with impaired renal function (more details in figure 1). In both groups, one patient died due to other reasons than bleeding or VTE. Although our sample size is not large enough to find significant differences, there were no correlations between clinical outcomes and renal function or peak anti-Xa activity. For instance, one major bleed was detected on day 6 while peak anti-Xa activity on day 4 was 0.13 IU/ ml and the patient was switched to 2850 IU on day 5 due to a further decrease of GFR. In the other patient with major bleeding, severe liver failure including low levels of coagulation factors (including factor V) likely attributed to bleeding, since peak anti-Xa activity was normal on day 3 and nadroparin was terminated in advance of the bleeding.


We found no accumulation of a prophylactic dosage of 5700 IU nadroparin in patients with moderate renal insufficiency with a GFR between 30-50 ml/min/1.73 m2 during a mean follow-up of five days. Peak anti-Xa activity appeared to be lower on day 5 than on day 1 in a large number of patients, especially in patients who underwent surgery. Although the correlation between anti-Xa activity and clinical outcomes is not unambiguous, it is the best available test to measure LMWH activity, and we therefore conclude that a high prophylactic dosage of nadroparin is safe in patients with GFR 30-50 ml/min/m2 . 1,30-34 Due to underrepresentation of patients with a GFR < 30 ml/ min/1.73 m2 we cannot give a conclusion for this group.
Our results are in accordance with a small earlier multiple-dose study.35 This study in six patients with nephrotic syndrome with a GFR above 30 ml/min did not find nadroparin accumulation. An earlier single-dose study did find a prolonged half-life and a higher area under the curve in renally impaired patients compared with healthy participants, but no significant differences in peak anti-Xa activity.25 Although a prolonged half-life after a single dose does not necessarily lead to clinically significant accumulation, this single-dose study seems to be the basis for the currently recommended prophylactic dose reductions in patients with a GFR below 50 ml/min.6,8,25,26,36,37
It is surprising that in a large number of patients peak anti-Xa activity decreased after repetitive administrations (figure 2), which seemed to correlate with undergoing surgery (p = 0.023). We confirmed administration of nadroparin on all days including the day of surgery. Earlier studies that reported a decrease of peak anti-Xa activity mainly included patients on the ICU and decrease of peak anti-Xa activity could be explained by ICU-related factors such as multi-organ failure and vasopressin use.38-42 We cannot explain the observed changes in anti-Xa activity. This finding does not affect our conclusion, because significantly more patients in the group with normal renal function underwent surgery. This might be due to the fact that in patients with normal renal function surgery will more often be the reason for hospitalisation while patients with renal insufficiency had more comorbidity leading to hospitalisation for other reasons.
We found that peak anti-Xa activity showed a high interindividual variability, while the intraindividual variability was low in each patient. The high interindividual variability suggests there are other patient factors besides renal function that influence LMWH pharmacokinetics. This was also reported by other authors, except for tinzaparin.20,22,25,26,36,37,43 We found a significant correlation between anti-Xa activity measurements and body weight. For instance, for the first measurement the Pearson correlation coefficient was -0.439 (p = 0.019). There was no significant correlation between age and anti-Xa activity. Therefore, the high interindividual anti-Xa variability could be partly explained by body weight, probably due to differences in volume of distribution. These findings did not influence our results, since ratios based on measurements within the same patient were used for analyses (figure 2).
The strength of this study is that we used several consecutive days of dosing and multiple peak anti-Xa activity measurements in each patient, enabling us to objectively observe nadroparin accumulation. Second, we classified the patients in groups with GFR below and above 50 ml/min/1.73 m2 , because it has become common practice to consider nadroparin dose reduction in GFR < 50 ml/min. Therefore our conclusion is directly applicable.6,8,25,26
The observational study design caused some limitations, including changes in renal function while patients were already included in the study. We decided to classify groups based on GFR at inclusion. Of the four patients with renal insufficiency at baseline in whom peak anti-Xa activity increased on the last day, two patients had a GFR that had increased > 50 ml/min/1.73 m2. Since this study aimed to define whether dose adjustment is necessary, we think this observation further supports the findings that it is not necessary to adjust the starting dosage of prophylactic nadroparin.
A second possible limitation is that with 28 evaluable patients the sample size was small. However, the study was powered to detect significant differences if present and is comparable with other LMWH accumulation studies.24,25,35,37
Another limitation is that we were not able to include patients with a GFR < 20 ml/min/1.73 m2. This is probably due to pre-emptive dose adjustment in patients with severe renal insufficiency. This is a major limitation, since this is the group of most interest: if any accumulation occurs it will be in this group. Earlier studies showed both an increased bleeding risk and a more than twofold VTE risk in patients with severe renal insufficiency.45-51
In conclusion, in patients with moderate renal insufficiency no accumulation of high prophylactic dosages of nadroparin could be detected. Therefore no dose adjustment is necessary when GFR is 30-50 ml/min/1.73 m2


This work was funded by the Dutch Kidney Foundation (Safety of medication in renal insufficiency, MV 13.36)


  1. Hirsh J, Warkentin TE, Shaughnessy SG, et al. Heparin and low-molecularweight heparin: Mechanisms of action, pharmacokinetics, dosing, monitoring, efficacy, and safety. Chest. 2001;119:64S-94S.
  2. Nurmohamed MT, Rosendaal FR, Buller HR, et al. Low-molecular-weight heparin versus standard heparin in general and orthopaedic surgery: a meta-analysis. Lancet. 1992;340:152-6.
  3. Gould MK, Dembitzer AD, Doyle RL, Hastie TJ, Garber AM. Low-molecular-weight heparins compared with unfractionated heparin for treatment of acute deep venous thrombosis. A meta-analysis of randomized, controlled trials. Ann Intern Med. 1999;130:800-9.
  4. Geerts WH, Jay RM, Code KI, et al. A comparison of low-dose heparin with low-molecular-weight heparin as prophylaxis against venous thromboembolism after major trauma. N Engl J Med. 1996;335:701-7.
  5. Thorevska N, Amoateng-Adjepong Y, Sabahi R, et al. Anticoagulation in hospitalized patients with renal insufficiency: a comparison of bleeding rates with unfractionated heparin vs enoxaparin. Chest. 2004;125:856-63.
  6. Davis R, Faulds D. Nadroparin calcium. A review of its pharmacology and clinical use in the prevention and treatment of thromboembolic disorders. Drugs Aging. 1997;10:299-322.
  7. Hirsh J, Levine MN. Low molecular weight heparin. Blood. 1992;79:1-17.
  8. Hetzel GR, Sucker C. The heparins: all a nephrologist should know. Nephrol Dial Transplant. 2005;20:2036-42.
  9. Samama MM, Gerotziafas GT. Comparative pharmacokinetics of LMWHs. Semin Thromb Hemost. 2000;26:1:31-8.
  10. Collignon F, Frydman A, Caplain H, et al. Comparison of the pharmacokinetic profiles of three low molecular mass heparins--dalteparin, enoxaparin and nadroparin--administered subcutaneously in healthy volunteers (doses for prevention of thromboembolism). Thromb Haemost. 1995;73:630-40.
  11. Hirsh J, Raschke R. Heparin and low-molecular-weight heparin: The Seventh ACCP Conference on Antithrombotic and Thrombolytic Therapy. Chest. 2004;126:188S-203S.
  12. Lim W, Dentali F, Eikelboom JW, Crowther MA. Meta-analysis: low-molecular-weight heparin and bleeding in patients with severe renal insufficiency. Ann Intern Med. 2006;144:673-84.
  13. Bazinet A, Almanric K, Brunet C, et al. Dosage of enoxaparin among obese and renal impairment patients. Thromb Res. 2005;116:41-50.
  14. Chow SL, Zammit K, West K, Dannenhoffer M, Lopez-Candales A. Correlation of antifactor Xa concentrations with renal function in patients on enoxaparin. J Clin Pharmacol. 2003;43:586-90.
  15. Mahe I, Aghassarian M, Drouet L, et al. Tinzaparin and enoxaparin given at prophylactic dose for eight days in medical elderly patients with impaired renal function. A comparative pharmacokinetic study. Thromb Haemost. 2007;97:581-6.
  16. Sanderink GJCM, Guimart CG, Ozoux ML, Jariwala NU, Shukla UA, Boutouyrie BX. Pharmacokinetics and pharmacodynamics of the prophylactic dose of enoxaparin once daily over 4 days in patients with renal impairment. Thromb Res. 2002;105:225-31.
  17. Alban S, Peterfai E, Melzer N, Hagedorn I, De Mey C. Conventional therapeutic doses of certoparin do not lead to exaggerated aXa-levels in all the patients with severe renal insufficiency. Hamostaseologie. 2013;33:A64.
  18. Alban S, Peterfai E, Melzer N, Hagedorn I, De Mey C. Conventional prophylactic doses of certoparin do not cause exaggerated aXa-exposure in patients with severe renal insufficiency. Hamostaseologie. 2013;33:A65.
  19. Mahe I, Gouin-Thibault I, Drouet L, et al. Elderly medical patients treated with prophylactic dosages of enoxaparin: influence of renal function on anti-Xa activity level. Drugs Aging. 2007;24:63-71.
  20. Siguret V, Pautas E, Fevrier M, et al. Elderly patients treated with tinzaparin (Innohep(registered trademark)) administered once daily (175 anti-Xa IU/kg): Anti-Xa and anti-IIa activities over 10 days. Thromb Haemost. 2000;84:800-4.
  21. Pautas E, Gouin I, Bellot O, Andreux JP, Siguret V. Safety profile of tinzaparin administered once daily at a standard curative dose in two hundred very elderly patients. Drug Saf. 2002;25:725-33.
  22. Rico S, Antonijoan RM, Ballester MR, et al. Pharmacodynamics assessment of Bemiparin after multiple prophylactic and single therapeutic doses in adult and elderly healthy volunteers and in subjects with varying degrees of renal impairment. Thromb Res. 2014;133:1029-38.
  23. Atiq F, van den Bemt PM, Leebeek FW, van Gelder T, Versmissen J. A systematic review on the accumulation of prophylactic dosages of low-molecular-weight heparins (LMWHs) in patients with renal insufficiency. Eur J Clin Pharmacol. 2015; 1:921-9.
  24. Mismetti P, Laporte-Simitsidis S, Navarro C, et al. Aging and venous thromboembolism influence the pharmacodynamics of the anti-factor Xa and anti-thrombin activities of a low molecular weight heparin (Nadroparin). Thromb Haemost. 1998;79:1162-5.
  25. Goudable C, Saivin S, Houin G, et al. Pharmacokinetics of a low molecular weight heparin (Fraxiparine) in various stages of chronic renal failure. Nephron. 1991;59:543-5.
  26. Nagge J, Crowther M, Hirsh J. Is impaired renal function a contraindication to the use of low-molecular-weight heparin? Arch Intern Med. 2002;162:2605-9.
  27. Mahmoodi BK, Gansevoort RT, Naess IA, et al. Association of mild to moderate chronic kidney disease with venous thromboembolism: pooled analysis of five prospective general population cohorts. Circulation. 2012;126:1964-71.
  28. Buller HR, Cohen AT, Davidson B, et al. Idraparinux versus standard therapy for venous thromboembolic disease. N Engl J Med. 2007;357:1094-104.
  29. Lim W. Using low molecular weight heparin in special patient populations. J Thromb Thrombolysis. 2010;29:233-40.
  30. Levine MN, Planes A, Hirsh J, Goodyear M, Vochelle N, Gent M. The relationship between anti-factor Xa level and clinical outcome in patients receiving enoxaparine low molecular weight heparin to prevent deep vein thrombosis after hip replacement. Thromb Haemost. 1989;62:940-4.
  31. Leizorovicz A, Bara L, Samama MM, Haugh MC. Factor Xa inhibition: correlation between the plasma levels of anti-Xa activity and occurrence of thrombosis and haemorrhage. Haemostasis. 1993;23(Suppl 1):89-98.
  32. Brophy DF, Martin EJ, Best AM, Gehr TW, Carr ME. Antifactor Xa activity correlates to thrombin generation time, platelet contractile force and clot elastic modulus following ex vivo enoxaparin exposure in patients with and without renal dysfunction. J Thromb Haemost. 2004;2:1299-304.
  33. Al Dieri R, Alban S, Beguin S, Hemker HC. Fixed dosage of low-molecularweight heparins causes large individual variation in coagulability, only partly correlated to body weight. J Thromb Haemost. 2006;4:83-9.
  34. Smith BS, Gandhi PJ. Pharmacokinetics and pharmacodynamics of low-molecular-weight heparins and glycoprotein IIb/IIIa receptor antagonists in renal failure. J Thromb Thrombolysis. 2001;11:39-48.
  35. Alhenc-Gelas M, Rossert J, Jacquot C, Aiach M. Pharmacokinetic study of the low-molecular-weight heparin fraxiparine in patients with nephrotic syndrome. Nephron. 1995;71:149-52.
  36. Schmid P, Brodmann D, Fischer AG, Wuillemin WA. Study of bioaccumulation of dalteparin at a prophylactic dose in patients with various degrees of impaired renal function. J Thromb Haemost. 2009;7:552-8.
  37. Schmid P, Fischer AG, Wuillemin WA. Low-molecular-weight heparin in patients with renal insufficiency. Swiss Med Wkly. 2009;139:438-52.
  38. Mayr AJ, Dunser M, Jochberger S, et al. Antifactor Xa activity in intensive care patients receiving thromboembolic prophylaxis with standard doses of enoxaparin. Thromb Res. 2002;105:201-4.
  39. Robinson S, Zincuk A, Strom T, Larsen TB, Rasmussen B, Toft P. Enoxaparin, effective dosage for intensive care patients: double-blinded, randomised clinical trial. Crit Care. 2010;14:R41.
  40. Dorffler-Melly J, de Jonge E, Pont AC, et al. Bioavailability of subcutaneous low-molecular-weight heparin to patients on vasopressors. Lancet. 2002;359:849-50.
  41. Cheng SS, Nordenholz K, Matero D, et al. Standard subcutaneous dosing of unfractionated heparin for venous thromboembolism prophylaxis in surgical ICU patients leads to subtherapeutic factor Xa inhibition. Intensive Care Med. 2012;38:642-8.
  42. Malinoski D, Jafari F, Ewing T, et al. Standard prophylactic enoxaparin dosing leads to inadequate anti-Xa levels and increased deep venous thrombosis rates in critically ill trauma and surgical patients. J Trauma. 2010;68:874-80.
  43. Grand’Maison A, Charest AF, Geerts WH. Anticoagulant use in patients with chronic renal impairment. Am J Cardiovasc Drugs. 2005;5:291-305.
  44. Rostin M, Montastruc JL, Houin G, D’Azemar P, Bayrou B, Boneu B. Pharmacodynamics of CY 216 in healthy volunteers: inter-individual variations. Fundam Clin Pharmacol. 1990;4:17-23.
  45. Wattanakit K, Cushman M. Chronic kidney disease and venous thromboembolism: epidemiology and mechanisms. Curr Opin Pulm Med. 2009;15:408-12.
  46. Wattanakit K, Cushman M, Stehman-Breen C, Heckbert SR, Folsom AR. Chronic kidney disease increases risk for venous thromboembolism. J Am Soc Nephrol. 2008;19:135-40.
  47. Folsom AR, Lutsey PL, Astor BC, et al. Chronic kidney disease and venous thromboembolism: a prospective study. Nephrol Dial Transplant. 2010;25:3296-301.
  48. Acedillo RR, Shah M, Devereaux PJ, et al. The risk of perioperative bleeding in patients with chronic kidney disease: a systematic review and meta-analysis. Ann Surg. 2013;258:901-13.
  49. Ferguson JH, Lewis JH, Zucker MB. Bleeding tendency in uremia. Blood. 1956;11:1073-6.
  50. Remuzzi G. Bleeding disorders in uremia: pathophysiology and treatment. Adv Nephrol Necker Hosp. 1989;18:171-86.
  51. Noris M, Remuzzi G. Uremic bleeding: closing the circle after 30 years of controversies? Blood. 1999;94:2569-74.
